Mascot Standalone Workstation

Electronics Assembly

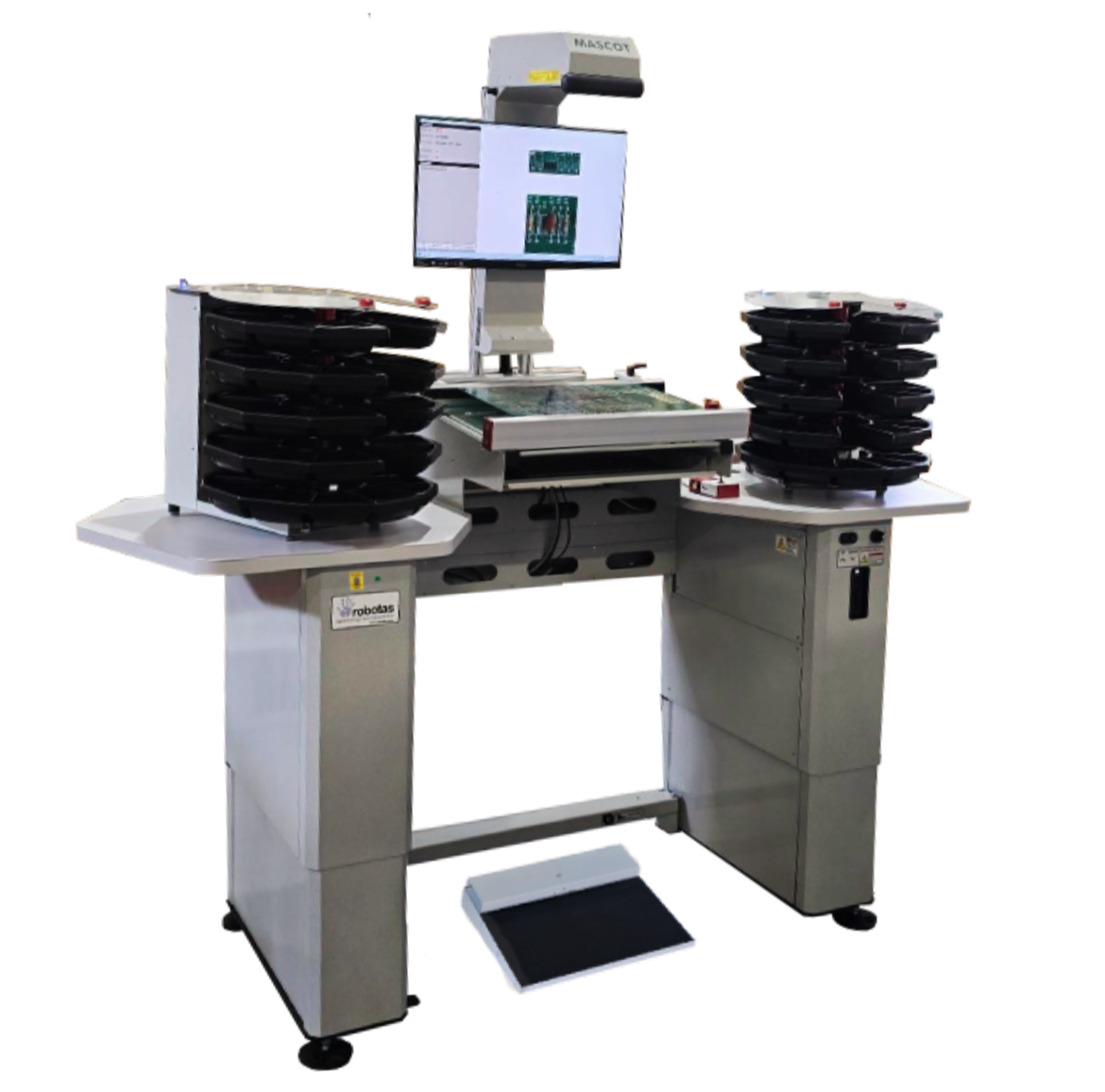

Mascot Standalone workstation in ESD Anti-Static paint with ergonomic workbench and two carousels used for cell production.

Full Mascot Standalone workstation in ESD Anti-Static paint with ergonomic workbench and two carousels. Turnkey solution used for cellular production.

Talk to our applications team about this system

Product Specification

System Part Number: SMSAB000AS

Mascot Standalone system with 2off Carousels, consisting:

Electronic height adjustable ESD workbench
Working height of 700mm to 1200mm.
Workbench has been designed for optimum picking ergonomics, with retractable keyboard tray and cable management built in.
ESD Safe PCB fixture, (Maximum PCB size 600mm x 500mm).
Precision Laserhead with height adjustable monitor mount and LED Operator Lighting incorporated.
Adjustable 19” LCD screen (Pre-fitted to column).
Two Motorised carousels, each with five ESD Ten Bin Trays (therefore 100 component storage bins).
Robotas System Control Hub with mains and DC power distribution.
Ergonomic Footpedal for stepping through Mascot assembly steps.
Joystick for Laser pointer programming.
Windows 10 Pro Pockit PC.
USB Robotas Software License Key housed inside the Control Hub.

Software Licenses:

Mascot Programming Software.
Mascot Assembly Software. (Multi language options)
Pro Compiler Software (Programs via CAD or Gerba data).
Multi Language options available for Operators Assembly software.

Alternative System Configurations

Configuration	Part Number
Mascot Standalone system as above, but with 1off Carousel	SMSAF000AS
Mascot Standalone system as above, but with 1off Carousel +1off 4 tier bench standing DPL Array	SMSAC000AS
Mascot Standalone system as above, but with 1off four tier bench standing DPL Array	SMSAG000AS
Mascot Standalone system as above, but with 2off four tier bench standing DPL Arrays	SMSAD000AS
