Mascot Verify

Electronics Assembly

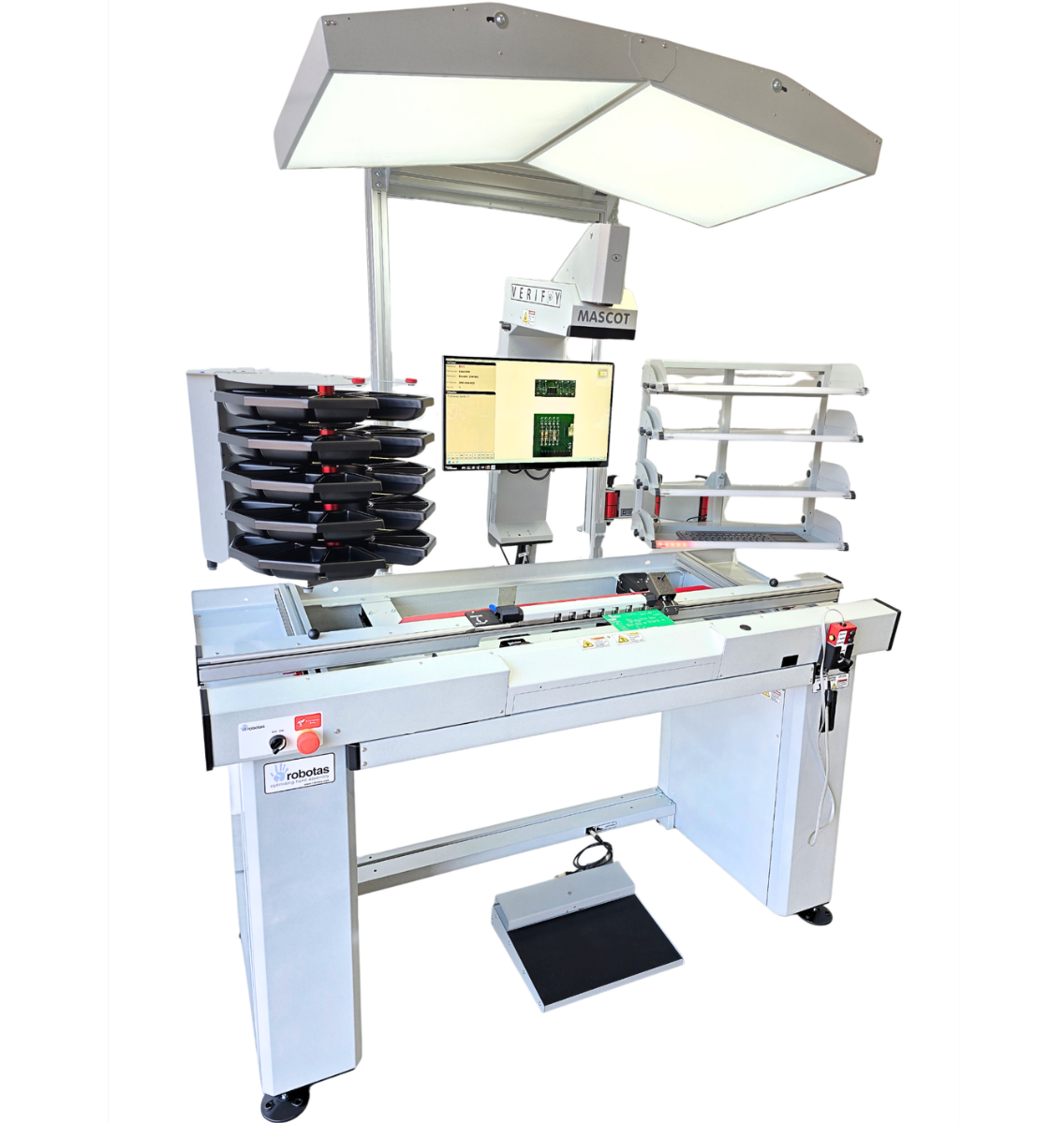

VERIFY is a new addition to the Mascot family of products. The combination of it’s camera, lighting and software technology provides the ability to verify in real time the presence and polarity of components during assembly and prior to soldering. Verify can be fitted to all of Robotas’ Mascot Systems to provide real time verification with no faults forward.

Talk to our applications team about this system

Product Specification

System Part Number: ACVSX100AS

Standalone Mascot Verify Module, consisting:

Integrated 20 Mega Pixel GigE Camera.
Overhead Industrial Intensity Polarised LED Lighting.
Light panel area of 1200mm (width) x 600mm (depth).
Light panel height 1200mm above working height.
An inspection area of 530mm (width) x 350mm (depth).
System supplied with lighting metal work, gantry and mounting posts.
VERIFY programming and assembly software module license.
High spec PC to drive image processing capabilities.
Power over Ethernet (POE) 15.4W and USB controller.

Alternative System Configurations

Configuration	Part Number
Standalone Mascot Verify Module	ACVSX100AS
Bench Top Mascot Verify Module	ACVWX100AS
Push Track Mascot Verify Module	ACVYX100AS
Conveyor Mascot Verify Module	ACVCX100AS
